![](https://www.endotext.org/wp-content/uploads/adrenal/16/figure2b.gif)

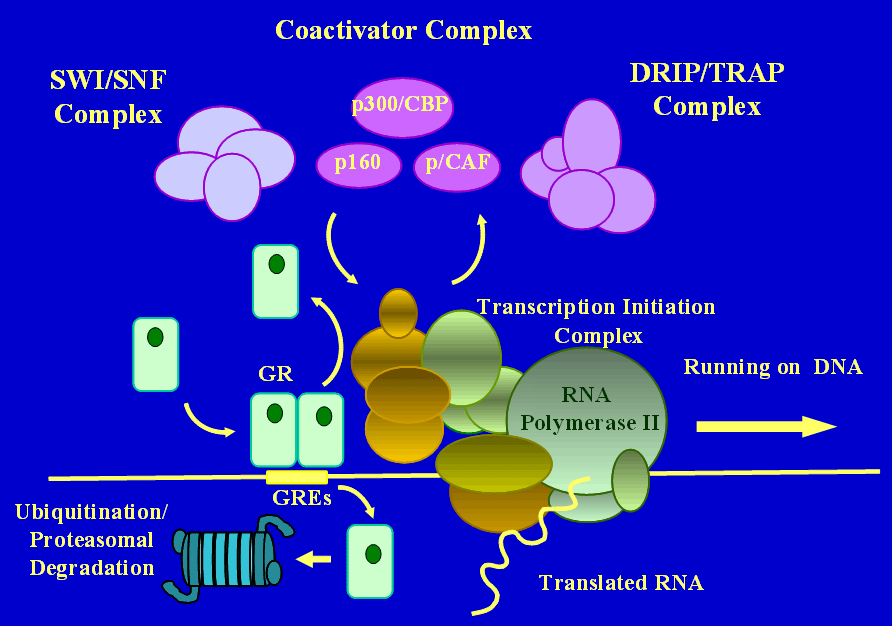

Figure 2: (B) Schematic representation of the interaction of AF-1 and AF-2 of hGR with coactivators. AF: activation function; DRIP/TRAP: vitamin D receptor-interacting protein/thyroid hormone receptor-associated protein; GR: glucocorticoid receptor; GREs: glucocorticoid response elements; HSP: heat shock protein; SWI/SNF: switching/sucrose non-fermenting; TF: transcription factor; TFRE: transcription factor-response element. Adapted from Reference 31.
