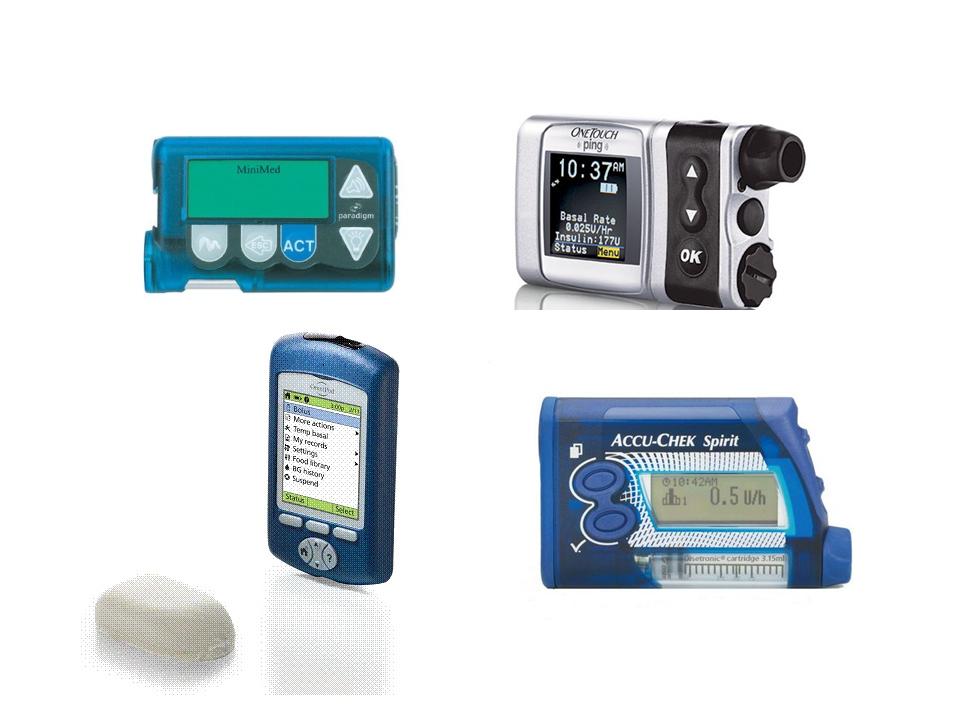

Figure 9. Examples of four modern-day insulin pumps. Upper left is the Medtronic MiniMed Paradigm 722 pump; upper right is the Animas Ping insulin pump; lower left is the Insulet Omnipod insulin pump; – the insulin delivery piece (right) is disposable and operated by the controller (left); the lower right is the Roche Spirit.
